WELDING MACHINE

Location:Home > Products > WELDING MACHINE

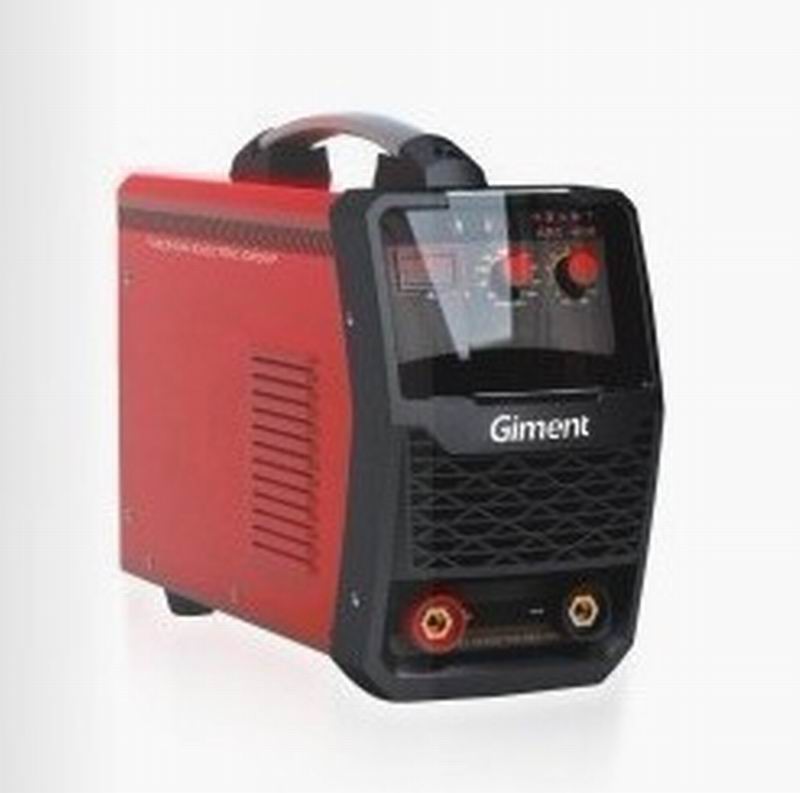

Portable TIG/MMA Welding Machine

Application：

@totally 5.5KG, compact and portable, easy and simple to operate
@start arc easily, stable welding arc, deep weld pool and beatiful welding shape
@hot striking arc current is adjustable which can greatly improve the arc-starting function
@suitbale for welding with different kinds of acid or basic electrode
@plastic box with complete accessories is optional: Electrode holder, earth clamp, cable joint, welding mask and brush

Product Information Down：

download Detailed(PDF format)　　

download PDF

Note：1、Detailed information products for PDF files；
　　　2、After downloading if not open the files,the installation of post PDF browser。

Detailed Instructions：

Model	ARC-140G	ARC-160G	ARC-200G	ARC-250G	ARC-315G	ARC-400G	ARC-500G
Type	IGBT Chip	IGBT Chip	IGBT Chip	IGBT Chip	IGBT Chip	IGBT Chip	IGBT Chip
Rated input voltage(V)	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%	single phase AC220± 15% three phase AC380± 15%
Rated frequency(Hz)	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Rated input power(KVA)	4.5	5.3	7	8	13	18	23
Rated input current(A)	20	24	32	12	20	27	34.6
Rated output	140A/25.6V	160A/26.4V	200A/28V	200A/28.8V	315A/32.6V	400A/36V	470A/38.8V
Output current(A)	20-140	20-160	20-200	20-220	20-315	20-400	20-470
No-load voltage(V)	56± 5	56± 5	62± 5	60± 5	60± 5	65± 5	65± 5
Rated duty cycle(%)	60	60	60	60	60	60	60
Efficiency(%)	85	85	85	85	85	85	85
Power factor	0.85	0.85	0.85	0.85	0.85	0.85	0.85
Protection grade	IP21	IP21	IP21	IP21	IP21	IP21	IP21
Insulation grade	F	F	F	F	F	F	F
Net weight(KG)	5	5	5.9	11.6	19.7	26.3	29.3
Gross weight(KG)	5.9	5.9	6.8	12.9	22.3	29.3	32.3
Housing of machine	iron	iron	iron	iron	iron	iron	iron
Dimension of machine(mm)	330× 120× 200	330× 120× 200	330× 120× 200	350× 130× 260	495× 200× 392	495× 200× 392	540× 280× 470
