PLASTICS SERIES Location:Home > Products > PLASTICS SERIES

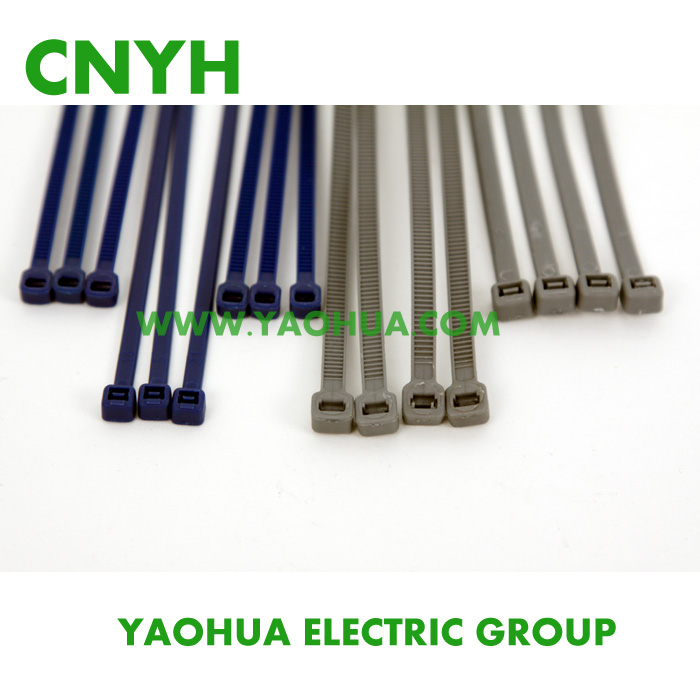

cable tie

Application：


Product Information Down：
download Detailed(PDF format)　　 download PDF
Note：1、Detailed information products for PDF files；
　　 　2、After downloading if not open the files,the installation of post PDF browser。
Detailed Instructions：

 1. Material: Nylon 66, Flammability 9V-2 by UL recognized, Heat-resisting, Acid & erosion proof, insulate well and not apt to age.

2. Operating Temperature: -35 degree to 85 degree

3. Color: Natural(standard color, white), UV black and other colors are available as request.

* color item: W=white & natural, B=black, BR=Brown, RD=red, OR=Orange, YL=Yellow, GN=Green, BL+Blue, PP=Purple, GY=Gray

Item No. Length Width(mm) Bundle Diameter Min.Loop Tensile Strength  　 Packing
Inch mm LBS kgs
 3x60 2 3/8" 60 2.5 2-11 18 8 100pcs & 1000pcs
3×80 3 3/16" 80 2.5 2-16 18 8
3×100 4" 100 2.5 2-22 18 8
3×120 4 3/4" 120 2.5 2-30 18 8
3×150 6" 150 2.5 2-35 18 8
3×200 8" 200 2.5 3-50 18 8
4×150 6" 150 3.5 3-35 40 18 100pcs & 500pcs
4×180 7" 180 3.5 3-42 40 18
4×200 8" 200 3.5 3-50 40 18
4×250 10" 250 3.5 3-65 40 18
4×300 11 5/8" 300 3.5 3-80 40 18
4×370 14 1/2" 370 3.5 3-102 40 18
5×120 4 3/4" 120 4.8 3-24 50 22 100pcs & 250pcs
5×180 7" 180 4.8 3-42 50 22
5×200 8" 200 4.8 3-50 50 22
5×250 10" 250 4.8 3-65 50 22
5×300 11 5/8" 300 4.8 3-82 50 22
5×350 13 3/4" 350 4.8 3-90 50 22
5×380 15" 380 4.8 3-102 50 22
5×400 15 3/4" 400 4.8 3-105 50 22
5×430 17 3/4" 430 4.8 3-120 50 22
5×500 19 11/16" 500 4.8 4-150 50 22
8×150 6" 150 7 3-33 120 55 100pcs & 250pcs
8×180 7" 180 7 3-42 120 55
8×200 8" 200 7 3-50 120 55
8×250 10" 250 7 4-63 120 55
8×300 11 5/8" 300 7 4-82 120 55
8×350 13 3/4" 350 7 4-90 120 55
8×400 15 3/4" 400 7 4-105 120 55
8×450 17 3/4" 450 7 4-118 120 55
8×500 19 11/16" 500 7 4-150 120 55
10x400 15 3/4" 400 9 15-105 175 80 100PCS
10x450 17 3/4" 450 9 15-130 175 80
10x500 19 11/16" 500 9 15-150 175 80
10x550 21 9/16" 550 9 15-165 175 80
10x650 25 9/16" 650 9 15-190 250 80
10x760 29 1/2" 760 9 15-220 250 80
