MCB Enclosures/ Distribution Box Location:Home > Products > MCB Enclosures/ Distribution Box

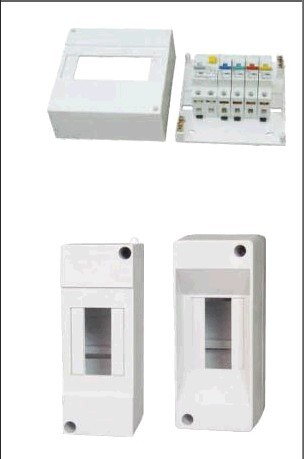

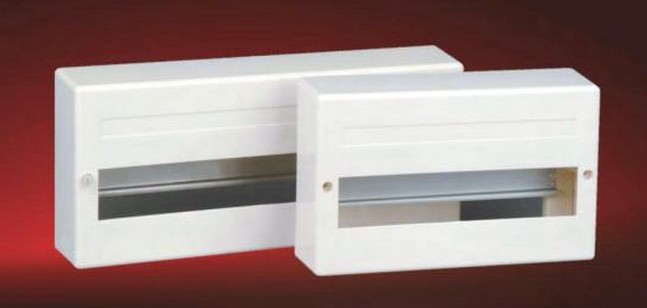

DT/H Series OF Surface Box

Application:

  Function

H series of surface box is kind of good-looking outline, small volume, easy to install economically
modular distribution box. It mainly use for building electric distribution system’s installation,
matched and house rebuild fitment ect. application. The Max rated current is 63A.
Product Information Down:
download Detailed(PDF format)   download PDF
Note:1、Detailed information products for PDF files;
    2、After downloading if not open the files,the installation of post PDF browser。
Detailed Instructions:

 MCB DISTRIBUTION BOARD WITHOUT PROTECTION COVER

1.Technique parameter:
Distribution box rated current:
1way to 4 way:50A
6way to 18 way:63A
2.Material:
  Insulation:Fire-proof type refractory material
  Color:White color
  Standard:accord with IIEC60439-3
3.Protective degree:
IEC60529:IP30
Fire-resistant and anomaly heat ability:
IEC60529-2-1 standard,650C/30sec
4.Composition,structure,
   Removable matte blocks to increase the poles.
   The removable various size holes are available
   on the box of up and duwn,bottom in case of
   connection wires in and out.
